Camera Housing

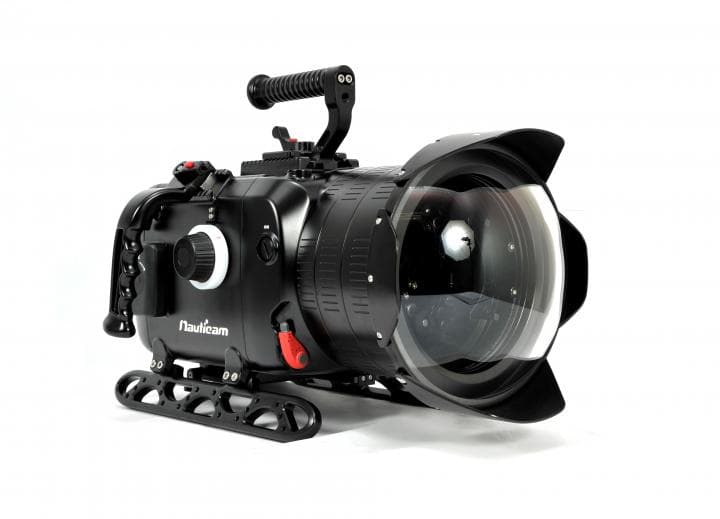

Camera HousingNauticam Underwater Kit for ARRI ALEXA Mini / Mini LF
Professional digital cinema system with dome port, monitoring, control & 40 m surface cable
- Dimensions
- 385 × 363 × 290 mm
- Weight
- 14.3 kg (on land)
- Port system
- N200
- Max. depth
- 80 m
Features
- Compatible with ARRI Alexa Mini & Mini LF
- Maximum diving depth: 80 m
- Monitor including underwater monitor housing included
- 40 m umbilical cable for camera control & live monitoring from the surface
- Integrated ARRI GPB-1 control unit – 10 freely assignable buttons
- Supports focus, iris & zoom control via ARRI cforce mini / plus motors
- Optically coated 250 mm glass dome (N200 system) – ideal for cinema lenses
- Flexible port configurations with included 30/40/50 mm extension rings
- Compatible with V-Mount or Gold Mount batteries (mounting plate included)
- Camera rig can be fully assembled outside of the housing – fast & safe setup
- Adjustable weight distribution (sideways and front/back) via variable weight mounts
- Integrated vacuum system with valve and hand pump for leak-proofing check
- Ideal for professional productions – from film sets to nature documentaries
Scope of Delivery
- Nauticam underwater housing for Alexa Mini / Mini LF with ARRI GPB-1 unit
- 250 mm dome port (N200) incl. 30 / 40 / 50 mm extension rings
- Monitor including Nauticam monitor housing
- 40 m umbilical cable for camera & image control from the surface
- Integrated vacuum system incl. M16 valve and hand pump
- 3x focus/zoom/iris gears with drive shafts
- 3x cforce mini & 2x cforce plus motor brackets
- V-Mount battery plate with LEMO connector
- Left, right & top handle
- Skids with trim weight holders
- Trim weights
- O-ring kit & tool set
- 3× Pelican 1620 transport cases
